Product Details

Quick Details

Brand Name: HAWSON	Model Number: HM45R-20/15	Type: Asynchronous
Motor Frequency: 50/60Hz, 433.92Mhz	Output Power: 145	Protect Feature: Drip-proof
Phase: Single-phase	Certification: CE, ROHS	AC Voltage: 208-230 / 240 V
Size: M3-48	Efficiency: IE 1	Product Name: 35 Tubular Linear Motor for Rolling Shutter with Remote Control
Usage: roller blind/windows	Color: customized	Speed: 15rpm
Rate Current: 0.64A	Protection Class: IP44	Max Turn: 45
Length: 625	Max Loading: 6SQM

Product Description

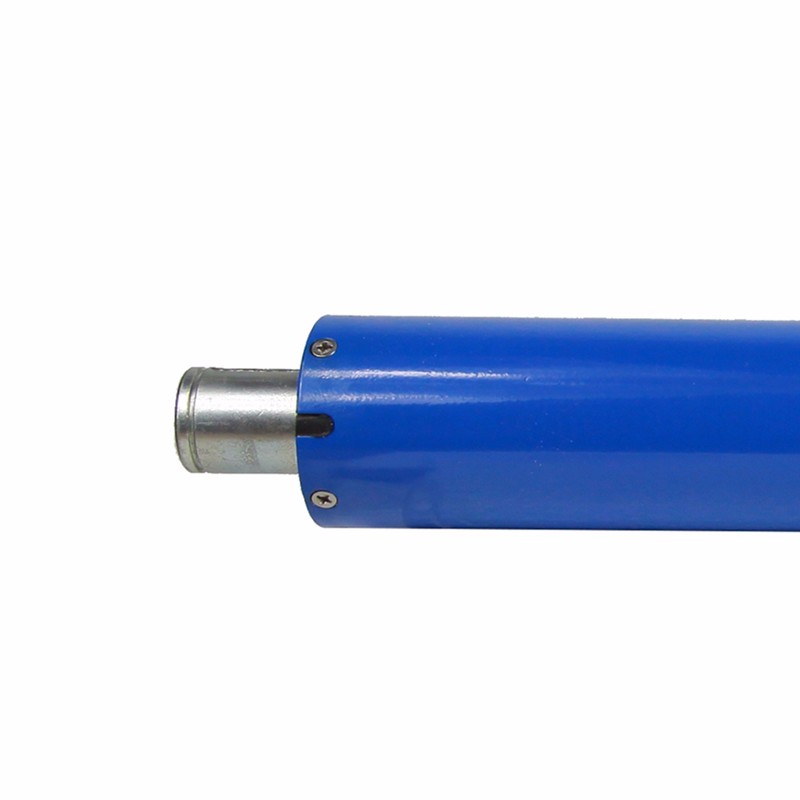

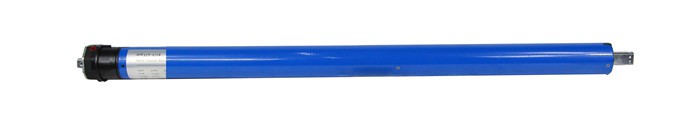

The 35 Tubular Linear Motor for Rolling Shutter with Remote Control is composed of a tubular casing and a drive assembly, a brake assembly and a stroke control assembly supported by the bearing housing in the tubular casing. The brake assembly comprises a motor right shaft fixing member, a right shaft, an electromagnet right shaft fixing member, an electromagnet, and a mast braking mechanism. The right shaft fixing member of the motor is fixed on the right end surface of the low speed motor to support one end of the right shaft. The electromagnet right shaft fixing member is mounted on the right shaft, the electromagnet is fixed on the electromagnet right shaft fixing member, and the mast brake mechanism is mounted on the right shaft and located in the cavity between the right shaft and the tubular casing.

Tubular Linear Motor has the advantages of low energy consumption and fast start-up. The brake assembly has a novel concept and reasonable structure, and has the advantages of fast braking speed, good braking effect and long service life. It can be widely used in a variety of electric lift doors and windows, shading systems, projection screens and other products.
